InquiryThe CAN bus isolator is a balanced differential signaling system, and when the transmission line is long, the signal can reflect back and interfere with the original signal. Based on this, our isolator also has a termination resistor design for CAN bus network communication to reduce signal reflections and ensure signal integrity. It passed the safety certification of IEC/EN62368-1 to keep operators and system equipment safe.
| Part # | Description |

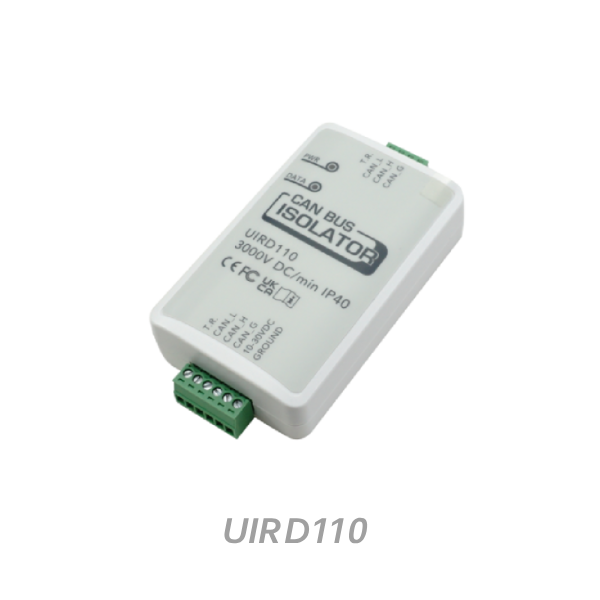

| UIRD110 | CAN to CAN Isolator, 3kV DC |
- Provides 3kV DC isolation level.
- Builds in termination resistors for reducing reflection signals when the data is for longer transmission.
- Automatically detects the baud rate and keeps working up to 8000kbps, a so-called CAN FD.
- The maximum data rate will depend on the actual operating conditions with a real cable length at working.
The ideal length is 800kbit/s at 50 meters. The longer cable length it is, the fewer baud rate it works.
- DIN rail mounting compatible by optional bracket.
- FCC part18; ICES -001 certified
- CE: EN55032/EN55035 certified
- LVD (IEC/EN62368-1) certified
|
DC Isolation |
3,000V 1min |
|
ESD Protection |
Contact 8kV, Air 15kV |
|
Power |
Input Range: +10 VDC ~ +30 VDC ; Consumption: 0.45W |
|
Operating Temperature |
-10 ° C to + 70 °C |
|
Storage Temperature |
-40 ° C to + 85 °C |
|
Specifications of data connections |
CAN bus: 5 k ~ 800 kbps. |
|
Connections |
Connections are made via terminal blocks. |
|
LED status |
Green blink: Power on |
|
Terminal Resistor |
120 Ohm on the CAN Port 1 side and CAN Port 2 sideon |
|
Baud Rate |
Auto-detection up to 8000 kbps. |
|
Protection Rating |
IP40 |
|

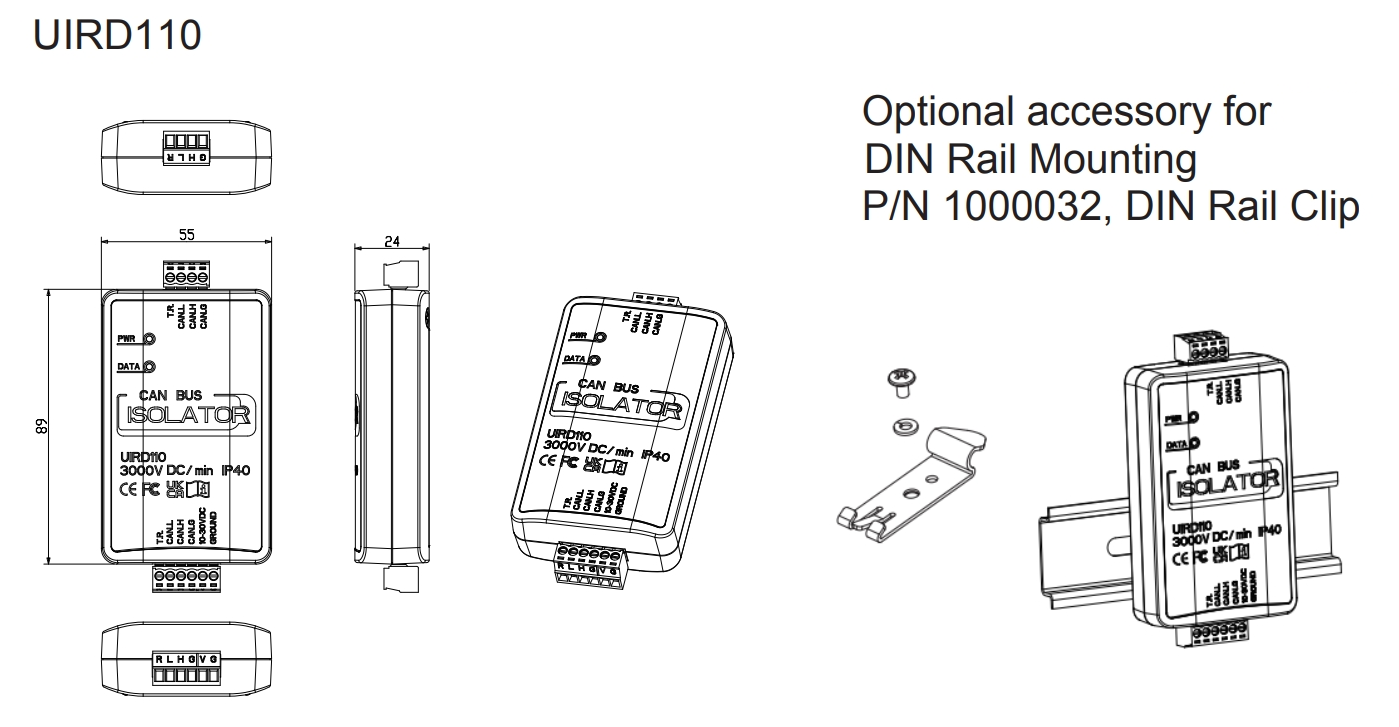

Dimension (Housing) |
55mm x 89mm x 24mm |
|
Standards |
Fully compatible with the ISO 11898-2; CAN2.0A , 2.0B and CAN FD |
|
Certifications |
• FCC part 18 |
