InquiryEmCom launches a series of network isolators, including medical and industrial ones. The medical network isolator complies with IEC/EN60601-1(Edition 3.2) and IEC/EN60601-1-2(Edition 4.1) of safety and EMC standards. The connection of a medical network isolator is a PC end to a device end with the Ethernet interface. The medical network isolator provides 2MOPP protection to the patients and the network connection is safely galvanically isolated in patient care vicinities from dangerous leakage currents that can travel through a copper-based Ethernet network. Plug-and-play design provides the fast and easy way of installation.
The industrial network isolator complies with IEC/EN 623628-1 safety standard. The connection of an industrial network isolator is a PC end to a device end with the Ethernet interface. The product line is with six types:
The first two types are the box type and box-cable type with the same dielectric strength at 4kV AC.
Another two types are also the box type and box-cable type with the same dielectric strength at 1.5kV AC.
The last two types are keystone jack type and keystone jack with cable type with the same dielectric strength at 4kV AC.
These six product types are reinforced insulation design, with gaining the same galvanic isolation from voltage spikes and ground loops, for electrically safe.
| Part # | Description |
| NIBAe00 | Network Isolator box type 6kV AC, 2MOPP |
| NIBBe00 | Network Isolator box cable type 6kV AC, 2MOPP |
| NIJAe00 | Network Isolator keystone type 6kV AC, 2MOPP |
| NIJBe00 | Network Isolator keystone cable type 6kV AC, 2MOPP |
| NIBAA12 | Network Isolator box type, 4kV AC |
| NIBBA12 | Network Isolator box cable type, 4kV AC |
| NIBAA13 | Network Isolator box type, 1.5kV AC |
| NIBBA13 | Network Isolator box cable type, 1.5kV AC |
| NIJAA12 | Network Isolator keystone type, 4kV AC |
| NIJBA12 | Network Isolator keystone cable type, 4kV AC |
- Isolates harmful leakage currents on a data network to protect patients and equipment
- Easy handling - Plug and play; does not require software, drivers or a power supply
- Compact and universally applicable
- DIN rail mounting compatible by optional bracket
- IEC/EN60601-1(Edition 3.2) and IEC/EN60601-1-2(Edition 4.1) certified
- IEC 62368-1: 2014/COR1: 2015 and EN 62368-1: 2014/A11: 2017 certified
- UL Listed
| Part # | NIBAe00 |
NIBBe00 | NIJAe00 | NIJBe00 |

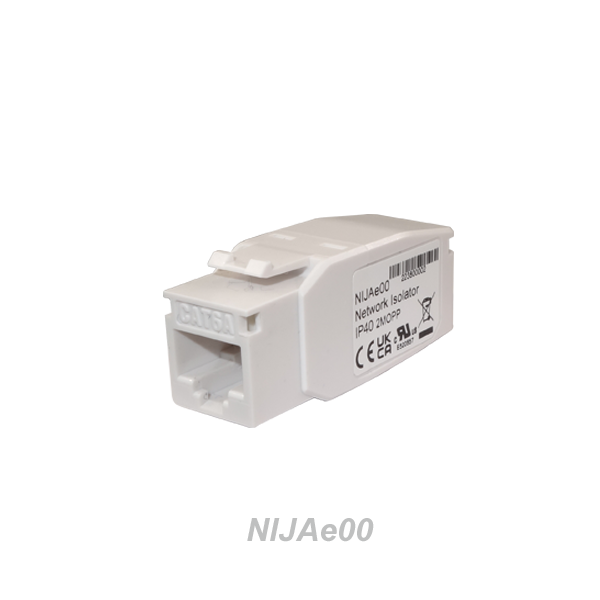

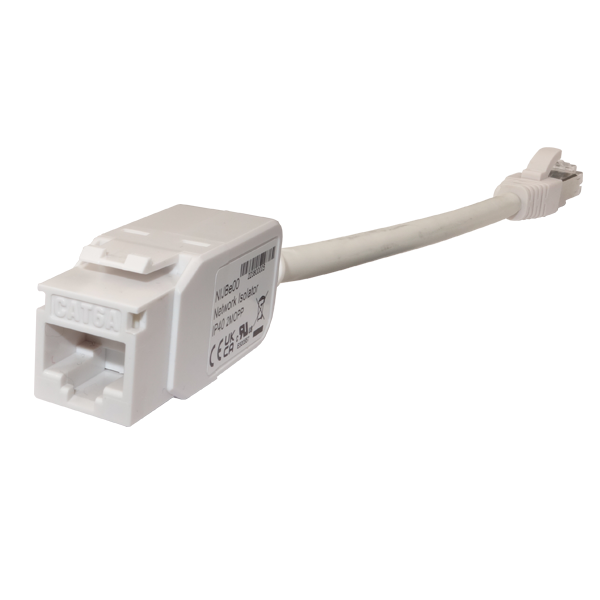

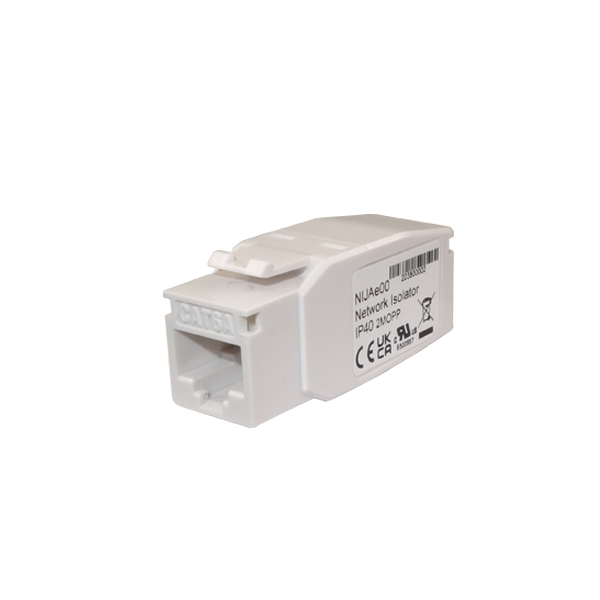

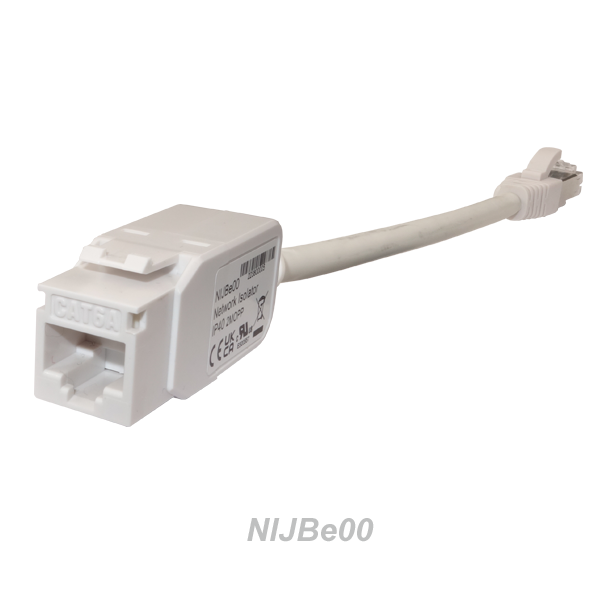

| Pictures | ![]() |
![]() |
![]() |
![]() |
| Description |
RJ45 Jack Isolator | RJ45 Jack Isolator | RJ45 Jack Isolator | RJ45 Jack Isolator |
| Product Type | Box | Box-Cable | Keystone | Keystone-Cable |
| Protection Rating | IP40 | IP40 | IP40 | IP40 |
| Performance Category | C6A/Class EA | C6A/Class EA | C6A/Class EA | C6A/Class EA |
| Dielectric Strength | 6kV AC 1min. | 6kV AC 1min. | 6kV AC 1min. | 6kV AC 1min. |
| Insulation | 2MOPP | 2MOPP | 2MOPP | 2MOPP |
| Input Interface | RJ45 Jack, straight | RJ45 Jack, straight | RJ45 Jack, straight | RJ45 Jack, straight |
| Output Interface | RJ45 Jack, straight | RJ45 Plug, cable | RJ45 Jack, straight | RJ45 Plug, cable |
| Compliance |
IEC/EN60601-1(Edition 3.2) IEC/EN60601-1-2(Edition 4.1) UL; LVD RoHS |
IEC/EN 60601-1(Edition 3.2) IEC/EN 60601-1-2(Edition 4.1) UL; LVD RoHS |
IEC/EN 60601-1(Edition 3.2) IEC/EN 60601-1-2(Edition 4.1) UL; LVD RoHS |
IEC/EN 60601-1(Edition 3.2) IEC/EN 60601-1-2(Edition 4.1) UL; LVD RoHS |
| Dimensions (mm) (L)x(W)x(H) |
67x33x24 | 67x33x24 Cable 180(L) |
47.5x17x20.7 | 47.5x17x20.7 Cable 167(L) |
| Operating Temperature/ Humidity | Temperature: -10°C to +70°C Relative humidity: 5% to 95% (non-condensing) |
Temperature: -10°C to +70°C Relative humidity: 5% to 95% (non-condensing) |
Temperature: -10°C to +60°C Relative humidity: 5% to 95% (non-condensing) |
Temperature: -10°C to +60°C Relative humidity: 5% to 95% (non-condensing) |
| Storage Temperature/ Humidity | Temperature: -40°C to +70°C Relative humidity: 0% to 95% (non-condensing) |
Temperature: -40°C to +70°C Relative humidity: 0% to 95% (non-condensing) |
Temperature: -40°C to +60°C Relative humidity: 0% to 95% (non-condensing) |
Temperature: -40°C to +60°C Relative humidity: 0% to 95% (non-condensing) |
| Remark | 2MOPP, a means of patient protection with double safety requirements, is more stringent on isolation level according to IEC 60601-1(Edition 3.2) standard for adopting in the medical environment. IEC/EN 60601-1(Edition 3.2) IEC/EN 60601-1-2(Edition 4.1) UL: ANSI/AAMI ES 60601-1(Edition 3.2), CAN/CSA-C22.2 No.60601-1(Edition 3.2) LVD: IEC/EN62368-1 |
|||
| Part # | NIBAA12 | NIBBA12 | NIBAA13 | NIBBA13 | NIJAA12 | NIJBA12 |

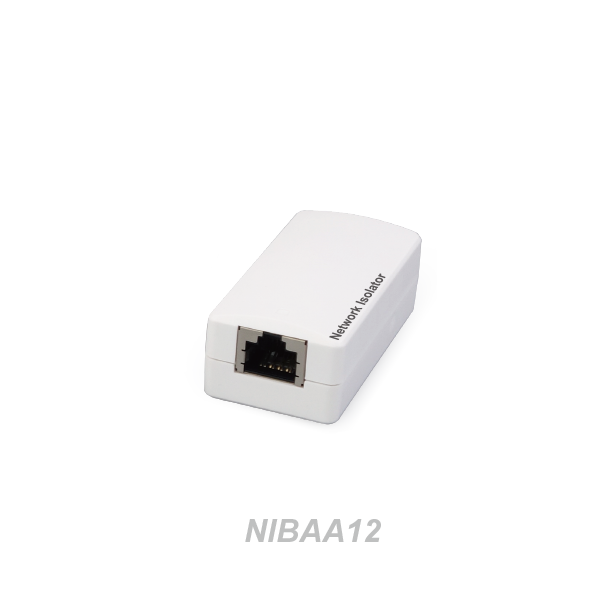

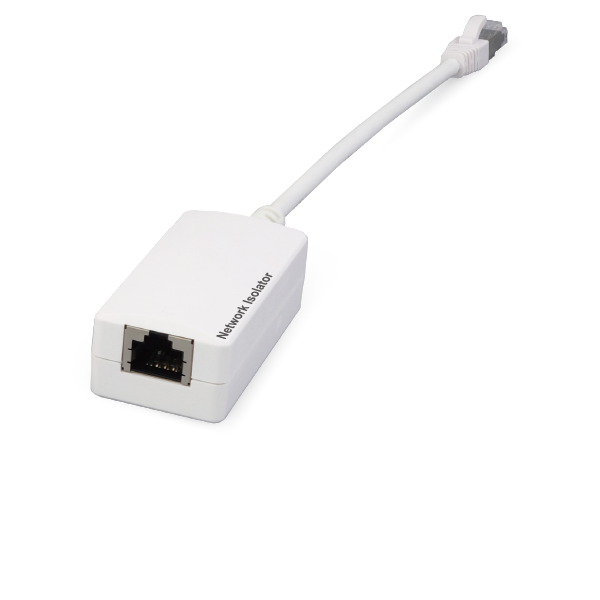

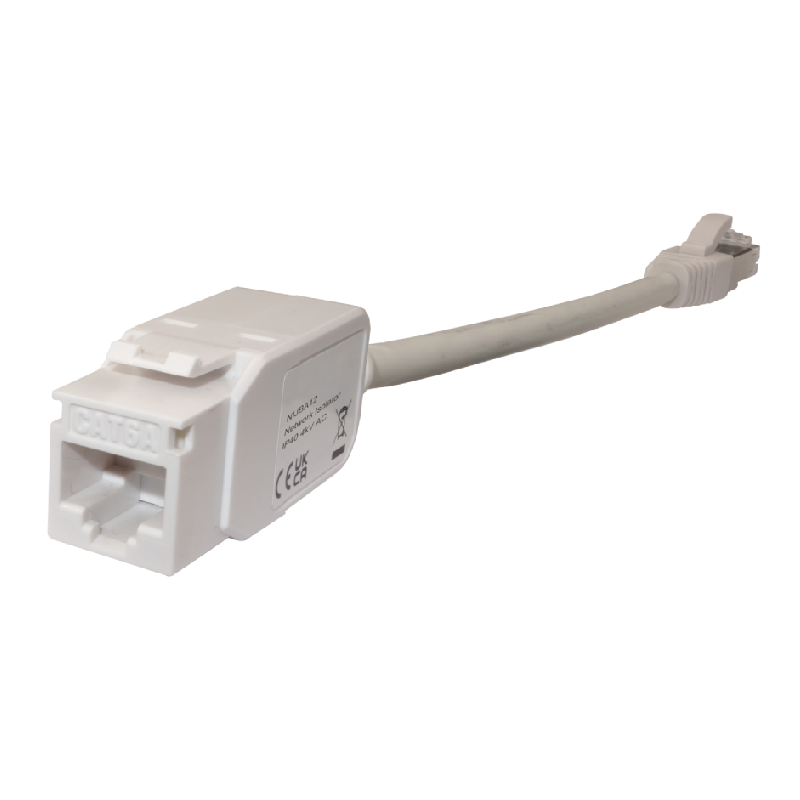

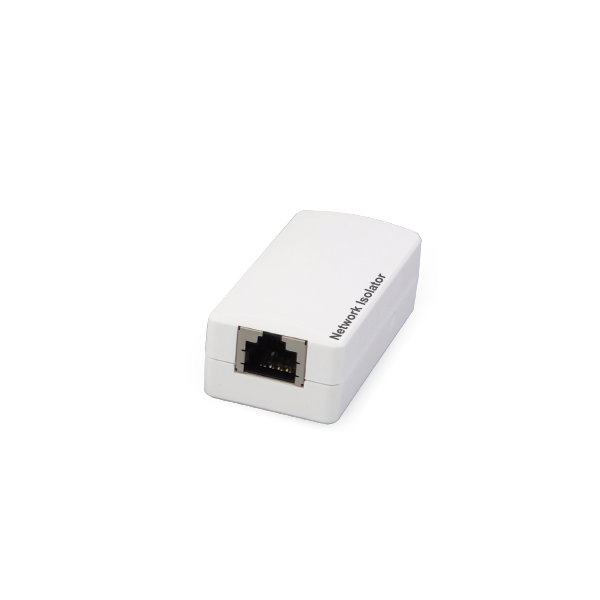

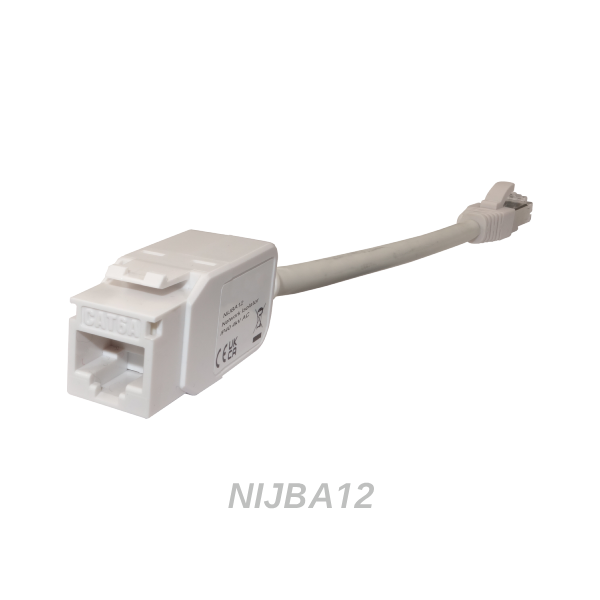

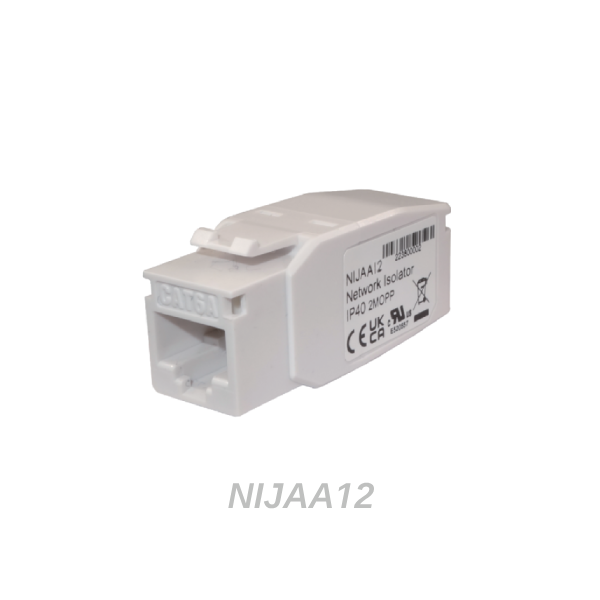

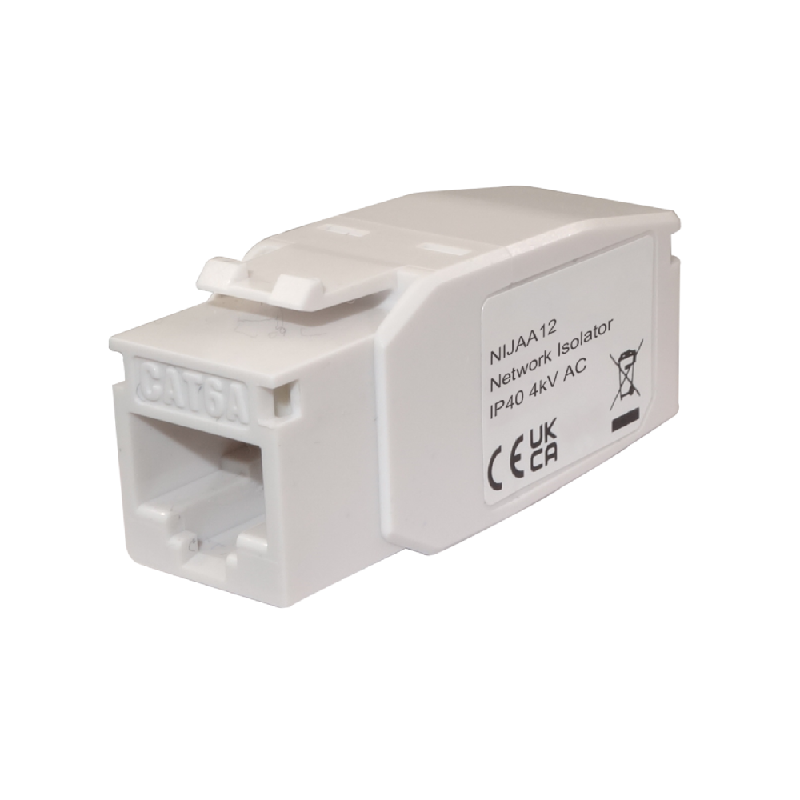

| Pictures | ![]() |
|
![]() |
![]() |
![]() |
![]() |
| Description |
RJ45 Jack Isolator | RJ45 Jack Isolator | RJ45 Jack Isolator | RJ45 Jack Isolator | RJ45 Jack Isolator | RJ45 Jack Isolator |
| Product Type | Box | Box-Cable | Box | Box-Cable | Keystone | Keystone-Cable |
| Protection Rating | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 |
| Performance Category | C6A/Class EA | C6A/Class EA | C6A/Class EA | C6A/Class EA | C6A/Class EA | C6A/Class EA |
| Dielectric Strength | 4kV AC 1min. | 4kV AC 1min. | 1.5kV AC 1min. | 1.5kV AC 1min. | 4kV AC 1min. | 4kV AC 1min. |
| Insulation | Reinforced | Reinforced | Reinforced | Reinforced | Reinforced | Reinforced |
| Input Interface | RJ45 Jack, straight | RJ45 Jack, straight | RJ45 Jack, straight | RJ45 Jack, straight | RJ45 Jack, straight | RJ45 Jack, straight |
| Output Interface | RJ45 Jack, straight | RJ45 Plug, cable | RJ45 Jack, straight | RJ45 Plug, cable | RJ45 Jack, straight | RJ45 Plug, cable |
| Compliance |
FCC part 15B ICES-003 CE: EN55032 CE: EN55035 LVD (IEC/EN62368-1) RoHS |
FCC part 15B ICES-003 CE: EN55032 CE: EN55035 LVD (IEC/EN62368-1) RoHS |
FCC part 15B ICES-003 CE: EN55032 CE: EN55035 LVD (IEC/EN62368-1) RoHS |
FCC part 15B ICES-003 CE: EN55032 CE: EN55035 LVD (IEC/EN62368-1) RoHS |
CE: EN55032 CE: EN55035 LVD (IEC/EN62368-1) RoHS |
CE: EN55032 CE: EN55035 LVD (IEC/EN62368-1) RoHS |
| Dimensions (mm) (L)x(W)x(H) |
67x33x24 | 67x33x24 Cable 180(L) |
67x33x24 | 67x33x24 Cable 180(L) |
47.5x17x20.7 | 47.5x17x20.7 Cable 167(L) |
| Operating Temperature/ Humidity | Temperature: -10°C to +70°C Relative humidity: 10% to 90% (non-condensing) |
Temperature: -10°C to +70°C Relative humidity: 10% to 90% (non-condensing) |
Temperature: -10°C to +70°C Relative humidity: 10% to 90% (non-condensing) |
Temperature: -10°C to +70°C Relative humidity: 10% to 90% (non-condensing) |
Temperature: -10°C to +60°C Relative humidity: 10% to 90% (non-condensing) |
Temperature: -10°C to +60°C Relative humidity: 10% to 90% (non-condensing) |
| Storage Temperature/ Humidity | Temperature: -40°C to +85°C Relative humidity: 10% to 90% (non-condensing) |
Temperature: -40°C to +85°C Relative humidity: 10% to 90% (non-condensing) |
Temperature: -40°C to +85°C Relative humidity: 10% to 90% (non-condensing) |
Temperature: -40°C to +85°C Relative humidity: 10% to 90% (non-condensing) |
Temperature: -40°C to +60°C Relative humidity: 10% to 90% (non-condensing) |
Temperature: -40°C to +60°C Relative humidity: 10% to 90% (non-condensing) |
| Remark | IEC/EN 62368-1 defines basic insulation, supplementary insulation and reinforced insulation levels for different insulation strengths. Insulation level: Reinforced insulation > Supplementary insulation > Basic insulation |
|||||
