USB TO RS-232 CONVERTER ISOLATOR
USB TO RS-232 CONVERTER ISOLATOR
InquiryThe USB to RS232 isolators are with two types. One is ａbox type and the other is a box type with SR cable. The connection for the isolator is a USB2.0 port to a PC end and an RS-232 port to a device end. The isolator gains galvanic isolations from voltage spikes and ground loops. It is compatible with various operating systems, being quite applicable to be used in the industry environment.
Specification
| Part # | UIRA110 | UIRB110 | ||
| Pictures |  |
 |
||
| Description | USB2.0 to RS-232 Converter Isolator | USB2.0 to RS-232 Converter Isolator | ||

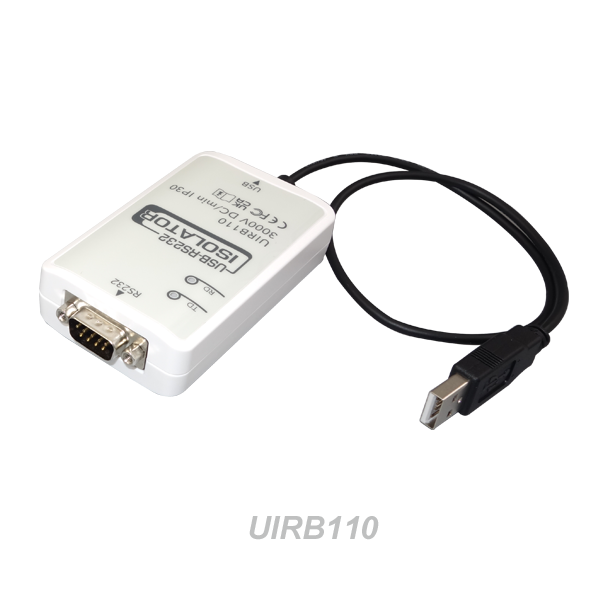

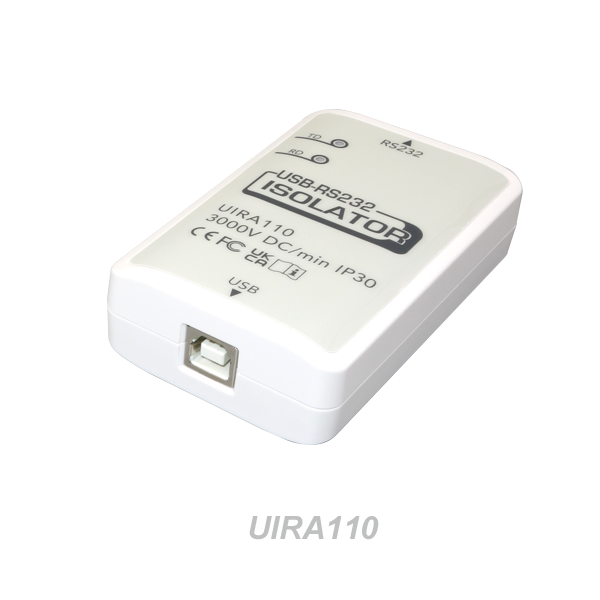

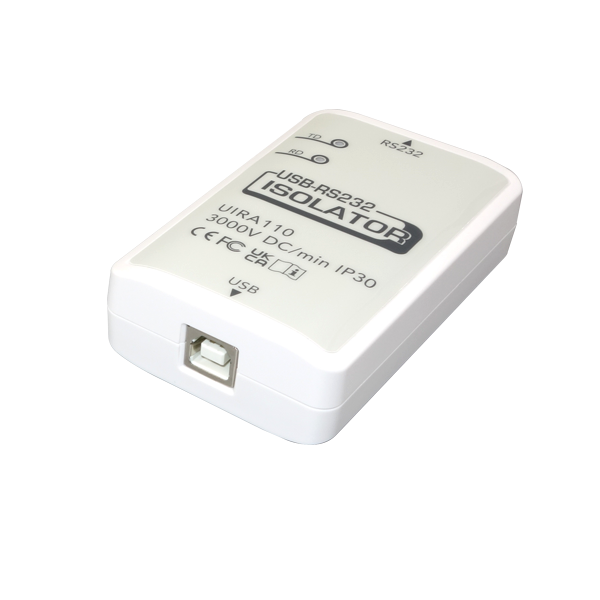

| Product Type | Box | Box-Cable | ||
| Protection Rating | IP40 | IP40 | ||
| Data Connections | USB 1.1 Low-Speed (1.5Mbps), USB 2.0 Full-Speed (12Mbps) High Speed Baud Rate up to 921.6Kbps |
|||
| Dielectric Strength | 3kV DC 1min. | 3kV DC 1min. | ||
| Insulation | Reinforced | Reinforced | ||
| Connections | Host Connector: USB B Type Device Connector: DB9M |
|||
| Compliance | FCC part18; ICES -001 CE: EN55032/EN55035 LVD (IEC/EN62368-1) RoHS |
FCC part18; ICES -001 CE: EN55032/EN55035 LVD (IEC/EN62368-1) RoHS |
||
| Dimensions (mm) (L)x(W)x(H) | 89x55x24 | 89x55x24 | ||
| SR Cable | NA | USB-A 40 cm approximately | ||
| LED Status | Blue blink: Transmitted data stage from PC to RS-232 Green blink: Recevied data stage from RS-232 to PC |
|||
| Operating Temperature/ Humidity | Temperature: -30°C to +75°C Relative humidity: 0% to 95% (non-condensing) |
Temperature: -30°C to +75°C Relative humidity: 0% to 95% (non-condensing) |
||
| Storage Temperature/ Humidity | Temperature: -40°C to +85°C Relative humidity: 0% to 95% (non-condensing) |
Temperature: -40°C to +85°C Relative humidity: 0% to 95% (non-condensing) |
||
| OS | Windows® XP / Windows® Vista / Windows® 7 / Windows® 8 / Windows® 8.1 / Windows® 10 ; Mac® OS 10.5,10.6 or higher but without supporting Mac® OS in 2020 later; Linux® : linux kernels from 3.6.x to 5.11.x |
|||
