USB TO RS-422 / RS-485 ISOLATOR
USB TO RS-422 / RS-485 ISOLATOR
Inquiry

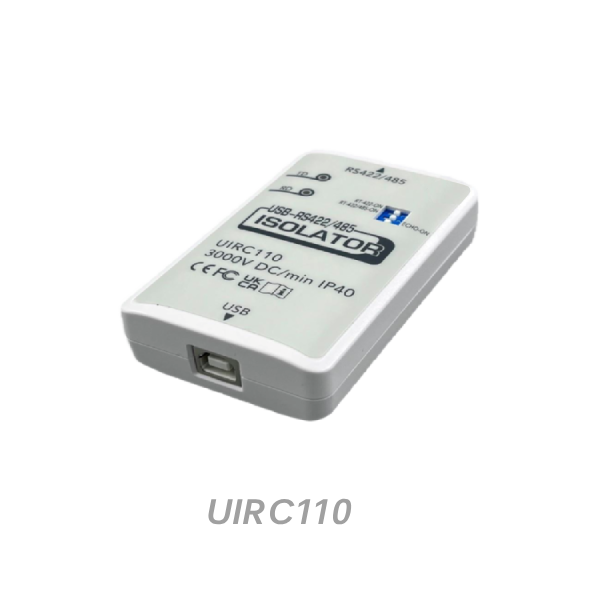

The UIRC110 USB to RS-422/485 Isolator enables you to attach an RS-422/485 device and gains isolation from voltage spikes and ground loops. It passed the safety certification of IEC/EN62368-1 to keep operators and system equipment safe and also offers surge and ESD protection on the RS-422/485 data lines. There are up to 32 devices for RS422 and 32 devices for RS485. RS422 or RS485 is a balanced differential signaling system, and when the transmission line is long, the signal can reflect back and interfere with the original signal. Based on this, our isolator also has a termination resistor design for RS422 or RS485 communication to reduce signal reflections and ensure signal integrity.
The UIRC110 comes with a function called Echo to assist an on-site personnel to detect the isolator if it is workable when the isolator is at the RS485 half-duplex mechanism.
The UIRC110 comes with a function called Echo to assist an on-site personnel to detect the isolator if it is workable when the isolator is at the RS485 half-duplex mechanism.
Ordering Information
| Part # | Description |
| UIRC110 | USB2.0 to RS-422 / RS-485 Converter Isolator, 3kV DC |
Feature
- Provides overvoltage protection from galvanic isolation.
- Provides 3kV DC isolation level.
- Builds in termination resistors for reducing reflection signals when the data is for longer transmission.
- Builds in echo function on RS485 for the on-site personnel to detect the isolator if it is workable.
- Connects up to 32 devices either RS422 or RS485.
- DIN rail mounting compatible by optional bracket.
- FCC part18; ICES -001 certified
- CE: EN55032/EN55035 certified
- LVD (IEC/EN62368-1) certified
- Provides 3kV DC isolation level.
- Builds in termination resistors for reducing reflection signals when the data is for longer transmission.
- Builds in echo function on RS485 for the on-site personnel to detect the isolator if it is workable.
- Connects up to 32 devices either RS422 or RS485.
- DIN rail mounting compatible by optional bracket.
- FCC part18; ICES -001 certified
- CE: EN55032/EN55035 certified
- LVD (IEC/EN62368-1) certified
Specification
| Part # |
UIRC110 | |
| DC Isolation |
3,000V 1min Contact 8kV, Air 12 |
|
| ESD Protection |
Contact 8kV, Air 12kV | |
| Power |
USB bus powered | |
| Ambient conditions during operation Temperature | (-10 ° C to + 70 °C) | |
| Ambient conditions during transport / storage Temperature | (-40 ° C to + 85 °C) | |
| Specifications of data connections |
USB Port USB 1.1 Low-Speed(1.5Mbps), USB 2.0 Full-Speed (12Mbps) |
|
| RS-422 Signals : RxD+ , RxD- , TxD+ , TxD- in Full-duplex working mode. RS-485 Signals : Data+ , Data- in Half-duplex working mode. Baud Rate: Either RS422 or RS485 is up to 921.6Kbps |
||

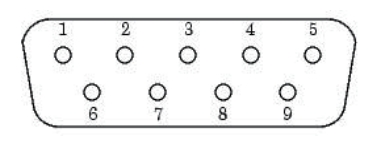

| Connections | Host Connector: USB B Type Device Connector: DB9 male RS-422/485 Pin Assignment  RS422: PIN 1 : TxD+ ; PIN 2 : TxD- ; PIN 3 : RxD+ ; PIN 4 : RxDPIN 5 : GND ; PIN 6~9 : N/A RS485: PIN 1 : Data+ ; PIN 2 : Data- ; PIN 3 : N/A ; PIN 4 : N/A ; PIN 5 : GND ; PIN 6~9 : N/A |
|
| LED status | Blue blink: Transmitted data stage from PC to RS422/485 Green blink: Received data stage from RS422/485 to PC. |
|
| Protection against harmful intrusion of water or solid substances | IP40 | |

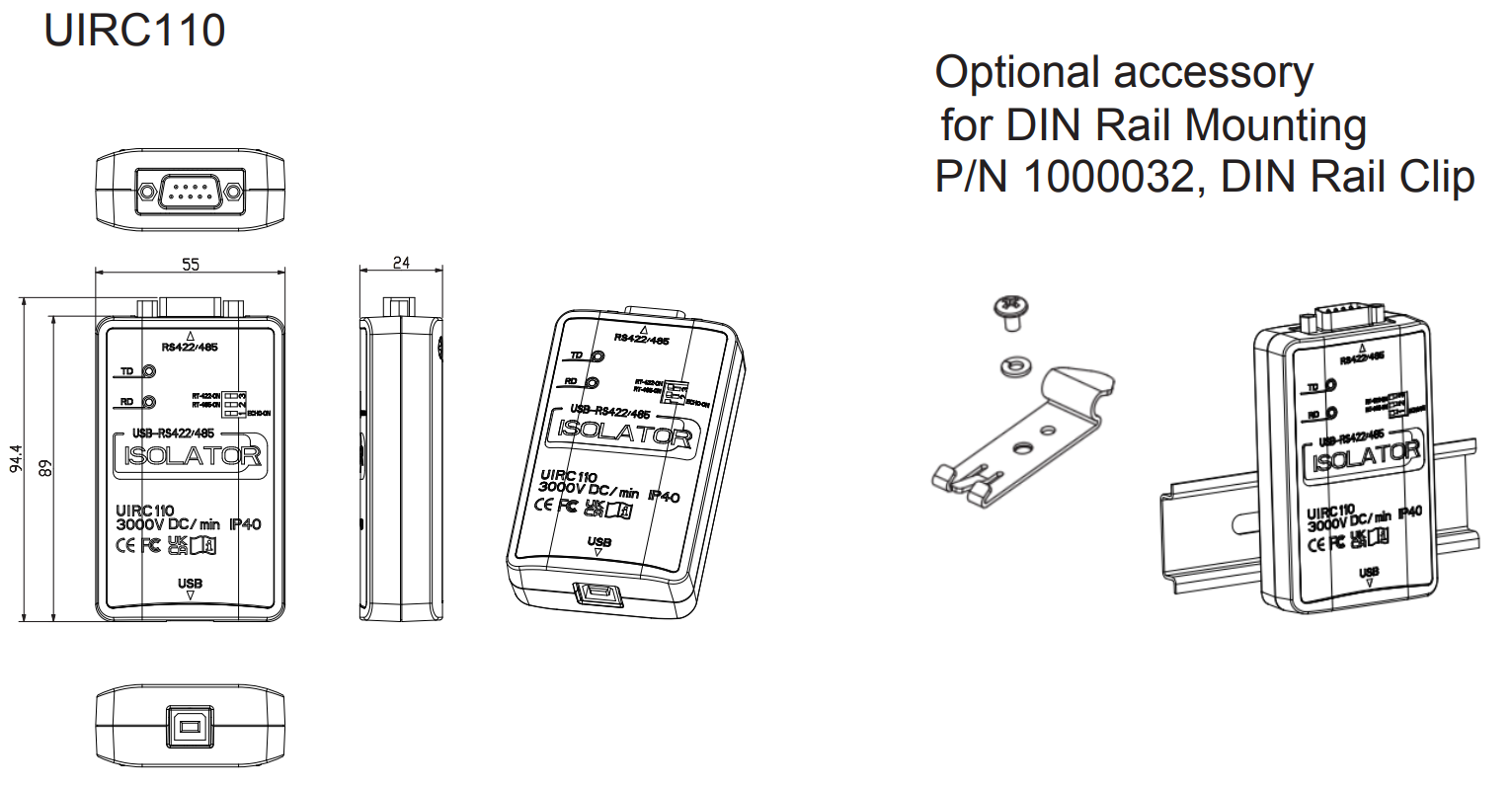

| Dimension housing | 55mm x 89mm x 24mm | |
| Driver OS Support | • Windows 11,64-bit • Windows 10 32,64-bit • Windows 8/8.1 32,64-bit • Windows 7 32,64-bit • Server 2008 and Server 2012 R2 • Mac OS • Linux 2.4 and greater • Android(J2xx) The drivers listed above are all available to download for free from FTDI website (www.ftdichip.com). Various 3rd party drivers are also available for other operating systems - see FTDI website (www.ftdichip.com) for details. For driver installation, please refer to http://www.ftdichip.com/Documents/InstallGuides.htm |
|
| Certifications | • FCC part 18 • IC/EMI: ICES -001 • EN55032 • EN55035 • EN62368-1(LVD) |
|
