PUSH PULL RJ45 SYSTEM
Inquiry
EmCom's “Push Pull RJ45 system” is a ruggedized and lockable designed RJ45 connector system, ideal for pro audio, video and lighting network and digital signal transmission applications. The chassis connectors shaped to fit into standardized panels out of the entertainment industry.
Both RJ45 jack and plug are Cat.6A performance rated provides solutions for high bandwidth data transfer in harsh and demanding environments. The connectors are field terminable, simple termination design enable the installers easy to achieve Cat.6A performance requirement at filed.
Both RJ45 jack and plug are Cat.6A performance rated provides solutions for high bandwidth data transfer in harsh and demanding environments. The connectors are field terminable, simple termination design enable the installers easy to achieve Cat.6A performance requirement at filed.
Ordering Information
| Part # | Description |

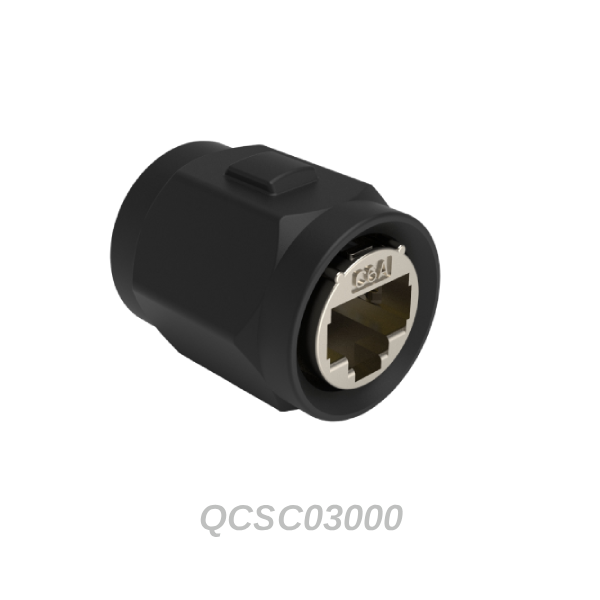

| QCSC03000 | Feed-through coupler (socket-to-socket), push-pull connection, CAT6A STP, extension type |
| QCSC02000 | Feed-through coupler (socket-to-socket), push-pull connection, CAT6A STP, panel mounting, IP66 (in mated state) |
| QCSC01100 | Feed-through coupler (socket-to-socket), push-pull connection, CAT6A STP, 2-screw panel mounting |
| QCSC01000 | Feed-through coupler (socket-to-socket), push-pull connection, CAT6A STP, 4-screw panel mounting |
| QCPT01000 | Field termination plug, push-pull connection, CAT6A STP, IP66 |
| QCPM01000 | Modular plug (can also be used with pre-assembled cords), push-pull connection, CAT6A STP |
| QCPM02000 | Modular plug, push-pull connection, CAT6A STP, IP66 (in mated state) |
| QCSK01000 | Jack (socket), push-pull connection, CAT6A STP, 4-screw panel mounting |
| QCSK01100 | Jack (socket), push-pull connection, CAT6A STP, 2-screw panel mounting |
| QCSK02000 | Jack (socket), push-pull connection, CAT6A STP, panel-mount, IP66 (in mated state) |
Features
- Field terminable, simple termination design enable the installers easy to achieve Cat.6 / Cat.6A performance at filed
- Terminable capability: 22–26 AWG solid wire
- Durability: 750 mating cycles
- Plug end standard gasket OD 7.5mm option al gasket OD 5.5mm available upon request
- UL Compliant
- 4PPoE compliant in accordance with IEEE802.bt Type 4
